CR2477 Battery Powered 5 years Lifetime IP68 Temperature Humidity Sensor Programmable BLE Bluetooth Beacon
HCBB22 is developed on nordic chipset nRF52, a low power consumption bluetooth beacon with 5 years lifetime. It comes with temperature and humidity sensor as default. The sensor data is more accruate than other competitors.
Overview
HCBB22 is a Bluetooth beacon based on low-power Bluetooth chip and with CR2477 button lithium manganese battery and has a battery life of up to 5 years ( at 0dBm transmit power, 1s broadcast interval case ).
HCBB22 can broadcast Bluetooth name, Bluetooth MAC address, UUID , Major , Minor , RSSI@1m, battery power and other information. The Bluetooth name, UUID, Major, Minor, transmission power and broadcast interval can be used through the mobile phone APP ( KTBB Connect ) Make settings. All broadcast content can be customized according to customer needs.
The HCBB22 broadcast distance is up to 100 meters ( open sight distance ), and can be installed and fixed using 3M glue or screws .
HCBB22 is divided into connectable type and non-connectable type. The connectable type can change the broadcast parameters related to Bluetooth beacons through mobile phone connection , and supports OTA upgrade (connectable type) .
HCBB22 is widely used in indoor positioning, indoor navigation, scenic area navigation, exhibition navigation, patrol check-in, information push, asset management, item tracking and other application scenarios.
Features
✔ Ultra- low power consumption, battery life up to 5 years (0dBm/1s, ambient temperature 25°C);
✔ The broadcasting distance is up to 100 meters ( open sight distance );
✔ Beacon parameters can be flexibly configured through the mobile APP;
✔ Support Bluetooth BLE4.2/5.0 protocol;
✔ Support OTA upgrade;
✔ IP68 waterproof rating;
Electrical Parameters
| Basic specifications | |

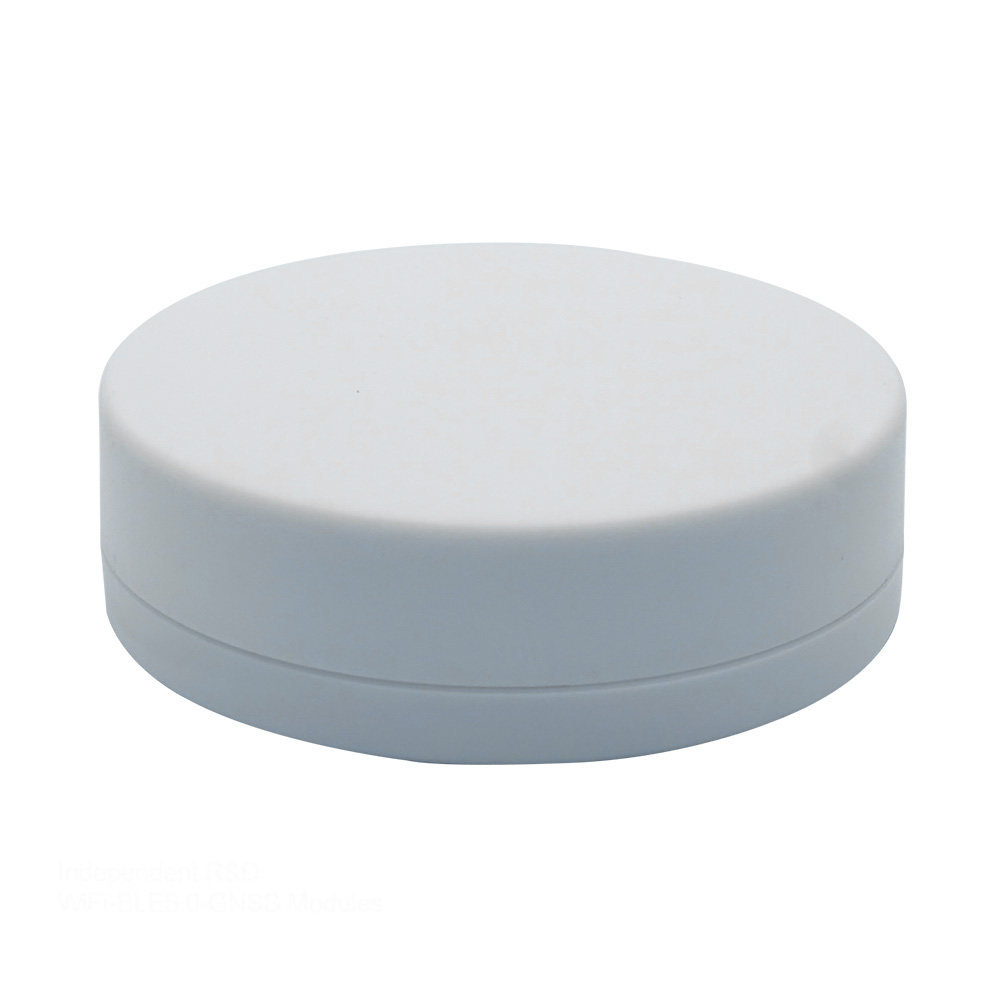

| Product number | HCBB22: round shape without ears (with 3M glue)

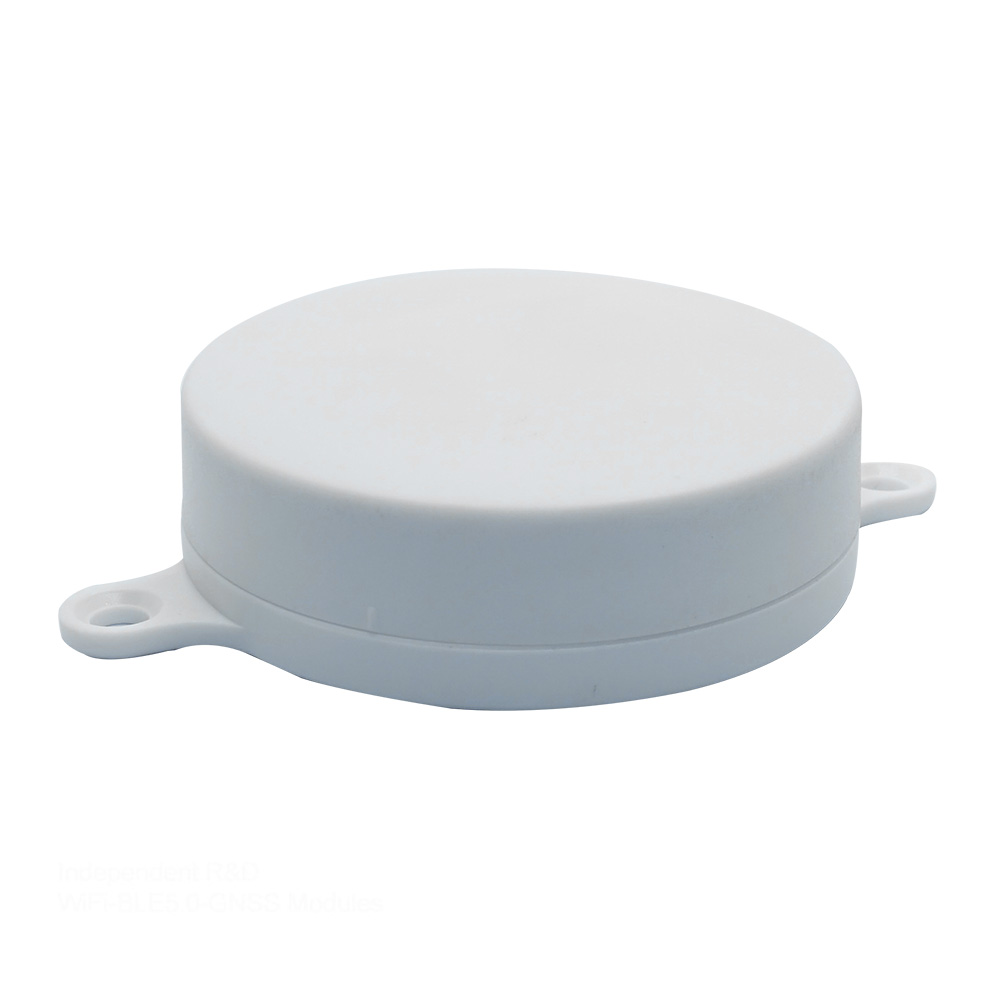

HCBB22-E: round with ears (with screws) |
| Product size (diameter*height) | 48*17mm |
| product weight | 40g (including battery and 3M glue) |
| Shell material/color | ABS/white (default) |
| waterproof level | IP68 |
| Installation method | 3M adhesive/screw installation |
| battery model | Button lithium manganese battery CR2477 |
| battery voltage | 3.0V |
| battery capacity | 1000mAh |
| Can the battery be replaced? | Can |
| Whether to support OTA | Support (firmware selects connectable type) |
| Configure APP | HC Connect |
| Technical specifications | |
| Bluetooth version | BLE4.2/5.0 |
| Broadcast data format | iBeacon or customized according to customer needs |
| Frequency Range | 2400MHz~2483.5MHz |
| Transmit power | -19.5dBm~+2.5dBm (default 0dBm) |
| broadcast interval | 100ms~10s (default 500ms) |
| Receive sensitivity | -94dBm |
| broadcast distance | 100 meters ( open sight distance ) |
| average current | 19uA (0dBm, 500ms) |
| Peak current | 3mA（0dBm） |
| Battery life | 5 years ( 0dBm, 1000ms, ambient temperature 25°C)* |
| Operating temperature | -40℃~85℃ |
| storage temperature | -40℃~85℃ |
| Working humidity | 10%~90% no condensation |
| Storage humidity | 5%~90% no condensation |
*Battery life is affected by factors such as the ambient temperature of the battery, battery self-discharge, etc. Please evaluate the battery life based on the actual use environment.
