Highly encrypted Private Protocol RJ45 WiFi 9-24V POE Bluetooth IoT gateway For Warehouse/Logistics/Batch-Search Management
2.4G MQTT supported bluetooth gateway for asset tracking. support search parcels in batches.
Overview

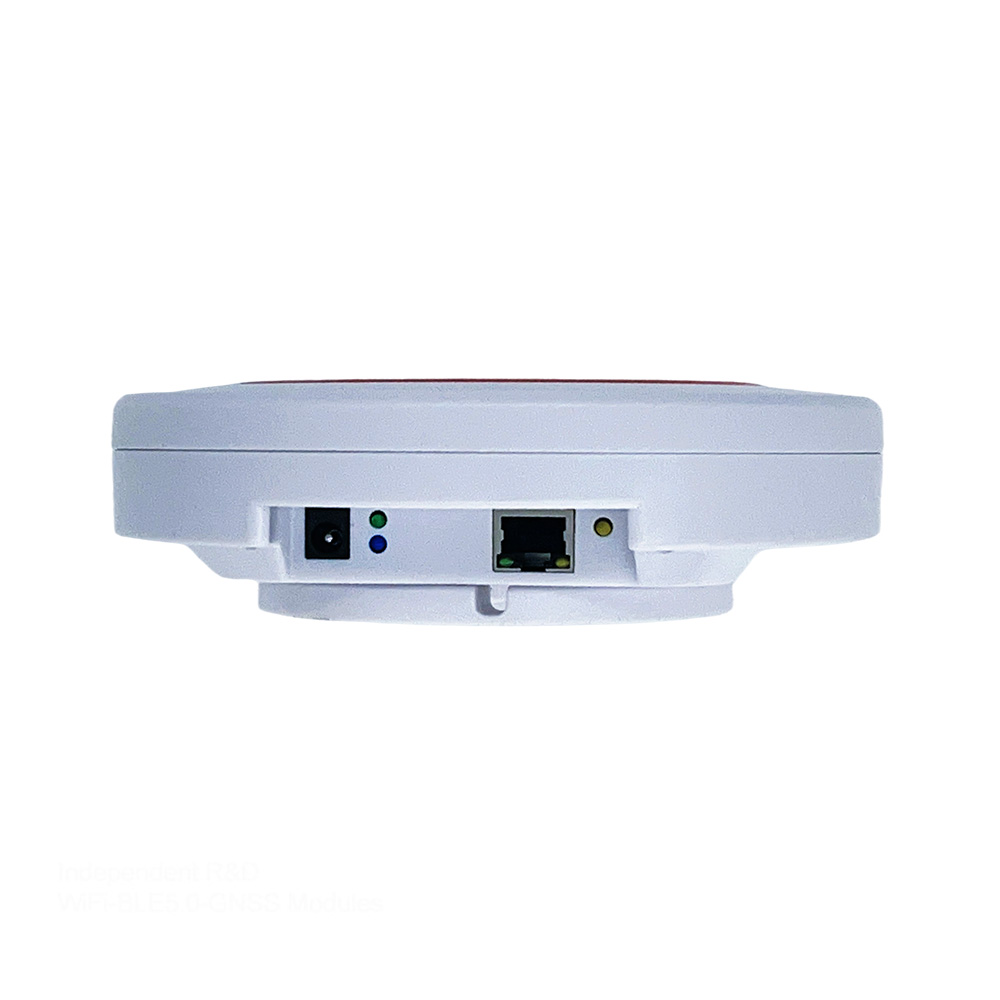

HCBG04 (2.4G) gateway can connect to the network through RJ45 network port or Wifi to transmit data, and the power supply supports external power supply (9-24V input) or POE power supply. The communication between the gateway and the 2.4G tag HCBB11 is a 2.4G private encryption protocol developed by our company, which has good security.
Features
Batch search, two-way data transmission
Secure private protocol AES encryption private.
Simple and applicable, users can use API interface
Power supply: DC 9-24v or POE
Power consumption: < 3w
Frequency band: 2.4GHZ
Communication distance: 20-50M depending on the environment
Device size: bottom diameter: 170mm height: 50mm
Specification
| Part Number | Gateway | HCBG04 |
| Spec.
|
Size | Diameter 170mm * Height 50mm |
| Net Weight | 211g | |
| Color | White | |
| Casing Material | ABS | |
| Communication | Wired Interface | RJ45 |
| Wireless Interface | WIFI | |
| Transport Protocol | Alibaba Cloud IOT | MQTT |
| 2.4G Wireless | Frequency | 2.4035GHz |
| Protocol | AES decryption private | |
| Communication distance | 20-50M（Depends on the environment） | |
| Power Supply | External power supply | DC 9-24v Power consumption 100mA/9v |
| POE Supply | Standard POE Power consumption 20mA/48v | |
| Power Consumption | Working Current | 100mA/9V |
| Installation Method | Ceiling Installation | Ceiling |
| Environment | Working Temperature | -20℃ ~ 60℃ |
| Storage Temperature | 0℃ ~ 45℃ | |
| Operating Humidity | 10% ~ 90% |
