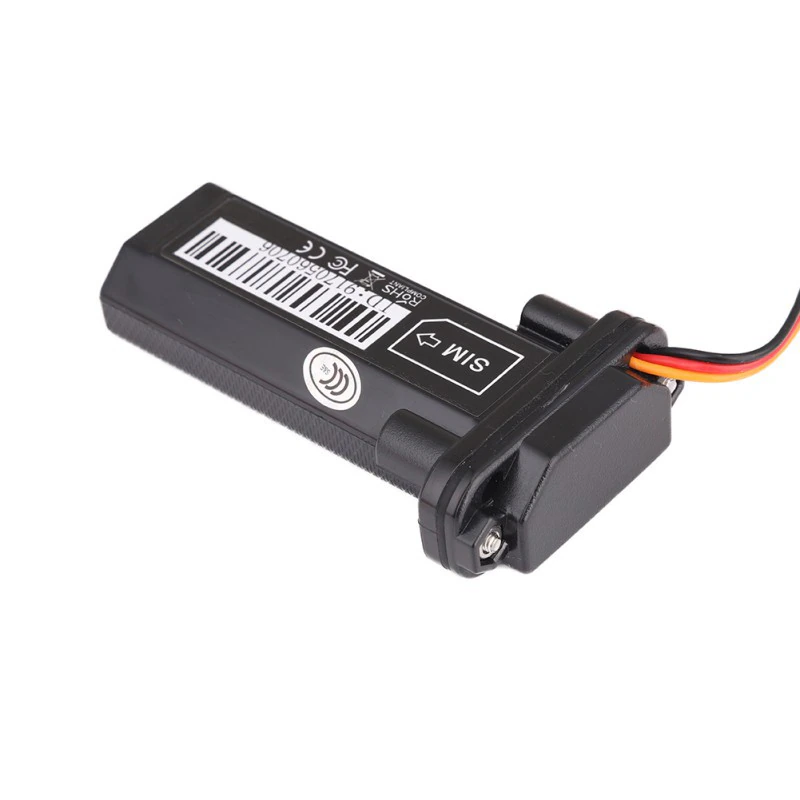

Mini Waterproof Anti-Lost Car Vehicle Motorcycle Real-time Tracking GSM GPRS GAT4 4G GPS tracker
Cheap Vehicle Tracking Positioning Anti-Lost Fleet Management Multi-language Motorcycle Gps Anti-Theft Device Tracker
Main Function
- Real-time positioning (positioning every 10 seconds by default) can be modified
- Movement/overspeed alarm
- 3-month history track, electronic fence
- High-grade shell
- Set 5 authorized accounts/set half time zone
- AGPS fast and accurate positioning
- Intelligent saving, blind area supplementary transmission
- Two ways to remotely control parking (optional relay)
- Power failure alarm/low power alarm (optional battery)
- ACC status platform display (4-wire optional)
- Upgrade APP settings
- 3 alarm modes
Share This Page
Indicator light Description
| Led Indicator Status | Description |
| Left Power Light – Normally On | Power on normally |
| The Middle Gps Light Flashes | Searching GPS signal |
| The Middle Gps Light Is Always On | GPS signal is normal |
| Right Gsm Light Is On | Searching GSM signal |
| Right Gsm Is Always On | GSM signal is normal and the card has been read |
Product parameters and specifications
| Content | Spec. |
| Size | 63mm x 46mm x 17mm |
| Weight | 40g |
| Network | GSM/GPRS |
| Network Frequency Band | 850/900/1800/1900Mhz |
| Chip | UBLOX |
| Gps Sensitivity | ‘-159dBm |
| Gps Accuracy | 5m |
| First Start Time | Cold status 45s |
| Warm status 35s | |
| Hot status 1s | |
| Storage Temperature | ’-40°C to +85°C |
| Working Temperature | ‘-20°C to +55°C |
| Humidity | 5%–95% non-condensing |
Newly added functional advantages and selling points
1. Increase the displacement alarm, and the alarm when it is out of the electronic fence area
2. Add smart power saving mode
4. Increase fuel and power cut, ACC status notification function, low battery/power failure alarm
5. Blind area retransmission function, when there is no mobile phone signal, the data is saved in GPS, and retransmission is performed when there is a signal
6. AGPS function, fast satellite positioning
